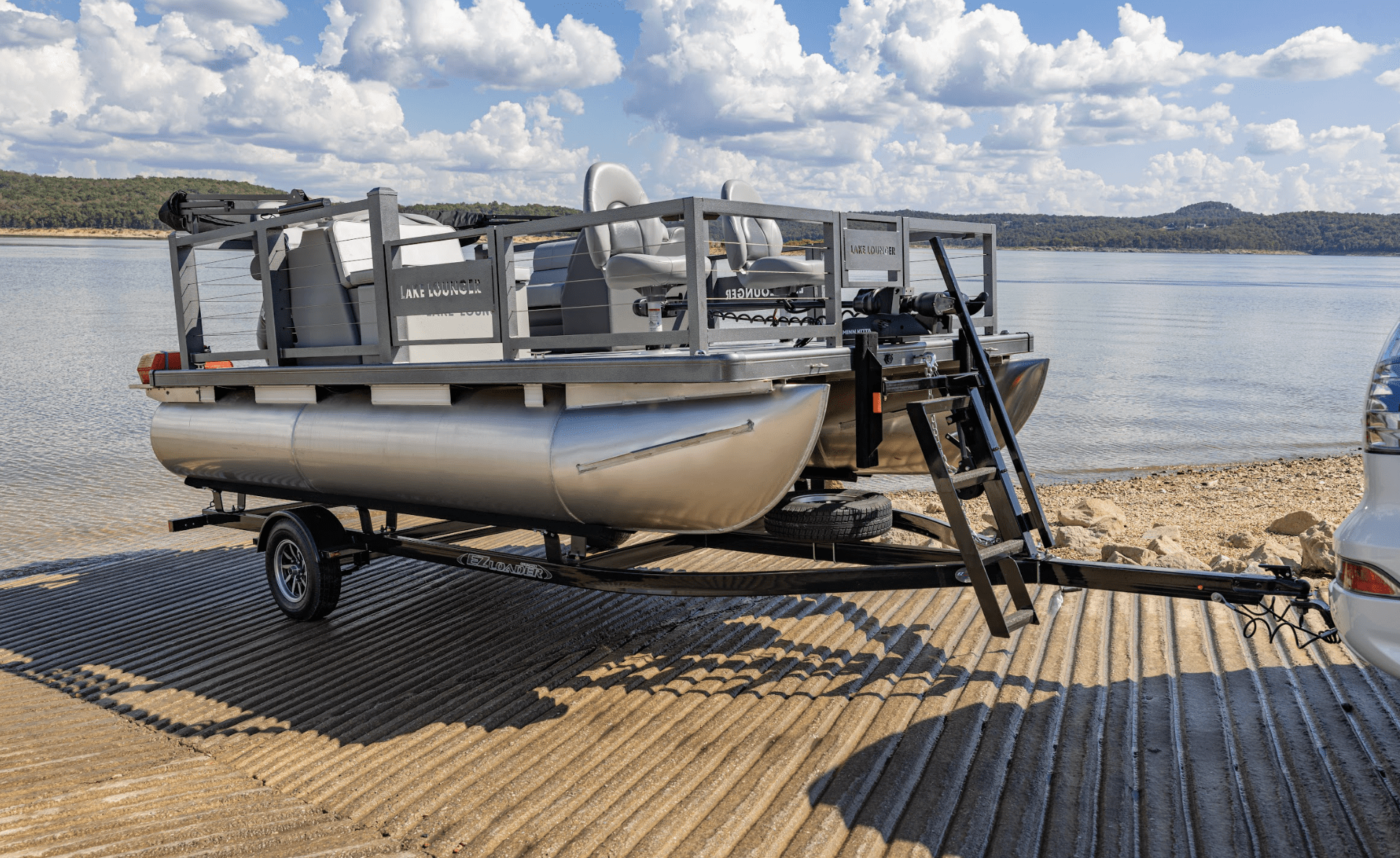

Single Axle Pontoon

Ideal for smaller pontoons up to 21 feet, these trailers feature a compact frame, spring suspension, and adjustable bunks to keep your boat secure on every haul.

Weight Capacity
2,300 lb. – 2,800 lb. capacity

Boat Length
16-21 ft in
Suspension
Spring and Torsion

Features

Product Features
Ladder with Drop step

Ladder with Drop step

Heavy-Duty Mount Bracket

Heavy-Duty Mount Bracket

Oval LED Tail Light

Oval LED Tail Light

Pontoon Post Load Guides

Pontoon Post Load Guides

Oil Bath Hubs Feature

Safety Cables

Specifications



Model Number Boat Length Carrying Capacity Tires* Avg. Trailer Weight GVWR No. of Bunks Axle Suspension No. of Axles Frame Material
PT1618-13S 16′ – 18′ 2,210 lbs. ST175/80D13C 13″ 5-HOLE 710 lbs. 2,920 lbs. 4 Spring 1 Steel Tube
PT1820-13S 18′ – 20′ 2,210 lbs. ST185/80D13C 13″ 5-HOLE 730 lbs. 2,940 lbs. 4 Spring 1 Steel Tube
PT1820-14S 18′ – 20′ 2,650 lbs. ST215/75D14C 14″ 5-HOLE 850 lbs. 3,500 lbs. 4 Spring 1 Steel Tube
PT2021-13S 20′ – 21′ 2,210 lbs. ST185/80D13C 13″ 5-HOLE 750 lbs. 2,960 lbs. 4 Spring 1 Steel Tube
PT2021-14S 20′ – 21′ 2,210 lbs. ST215/75D14C 14″ 5-HOLE 785 lbs. 2,995 lbs. 4 Spring 1 Steel Tube
* Tire size may vary due to optional wheel and tire choices.

Shop Custom Parts

Enjoy EZ Loader’s custom-fit trailers—designed with marine-grade hardware and engineered to maximize durability—so you can enjoy worry-free towing, easy launching, and more time on the water.
