Custom Aluminum Trailer

Aluminum

With the recent tremendous increase of interest in aluminum trailers on our website hits and social media, we have expanded our Aluminum Watersport Series line of trailers. Our custom fit aluminum I-beam models are available from 2350# to 15,000# capacity for I/O’s or O/B’s, and also Forward Drives and Inboard Configurations from 4500# to 15000# capacity. In 2018, we continue to offer you the best of the best. Our custom fit I-Beam Trailers comes standard with treated lumber bunks, LED lighting, 3”x3”x 1/4” cross members for the most durable and strength in the industry , as well as tread plate fenders with the optional upgrade to polished stainless steel fenders, 4” Knurled steps with an option to go to full steps, along with many more optional upgrades such as stainless hardware, torsion axles, swing tongue on some models, load guides, composite bunk covers, retractable tie downs, LED rail lights with logo included, rear illumination and launching lights. NMMA certified and meets compliance standards for NATM and comes to you with 5 year from retail sale and 6 years from manufacturing date.

Our COASTAL SERIES, new for 2018, is made of I-beam construction with lots of value built into its design. This specially designed model is only available in single axle configurations, featuring vertical bunks, treadplate fenders, torsion axles, and galvanized wheels with Bias Ply Tires standard including FREE Road side Assistance Program for 1 year if needed through Carlstar Tires.

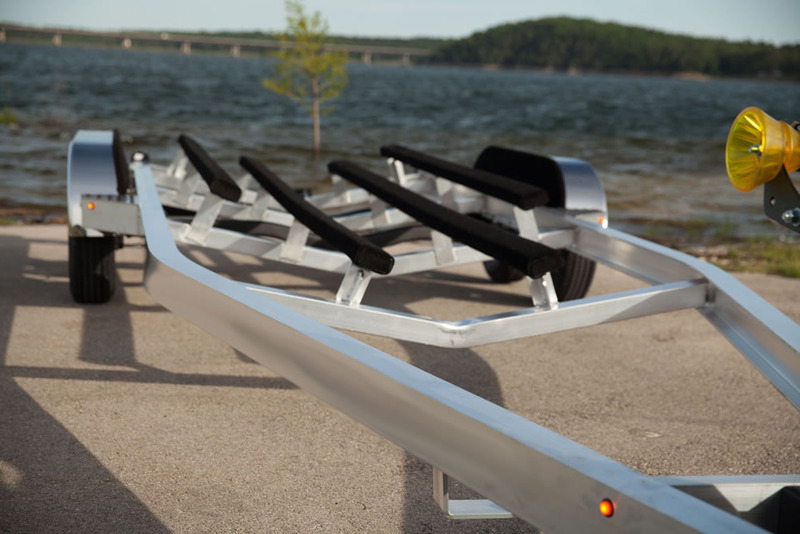

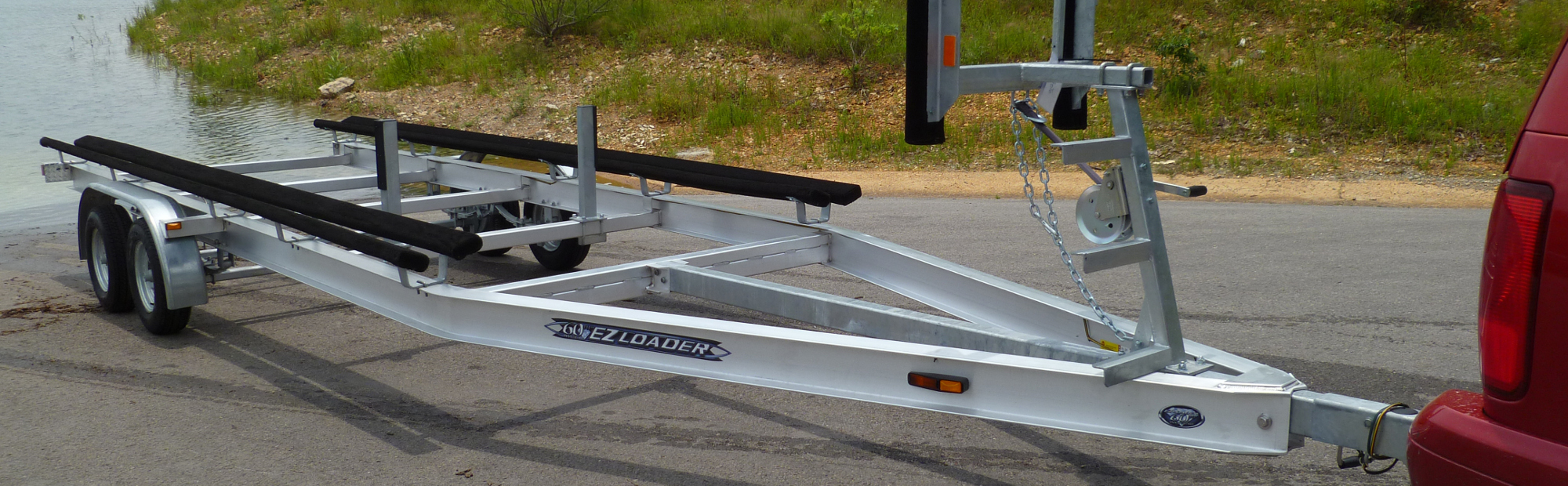

For the best looking and most durable aluminum trailer EZ Loader has a patented construction extrusion called the I-Tube, an I-beam with an additional vertical extrusion which keeps the wires and brake lines in a corrosion protective tube environment, many have copied us knowing ours is the best design available, but these counterfeits are not true I-Tube extrusions. Our trailer provides the thickest rails with the least amount of flex. A bit more expensive but well worth it when you are buying a trailer for the long haul designed to last. Besides being NMMA and NATM certified, our trailers come standard with a bullet LED light package, torsion axles, disc brakes on all axles, radial tires mounted on our NEW aluminum Turismo wheels, treadplate fenders with our sport custom steps, and coated zinc hardware with the option to upgrade to stainless steel hardware, along with many other upgrade options.

FEATURES

SPECS

Custom I-BEAM
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
CAIB2350 2350 2960 16-18 I-BEAM Aluminum Single Spring N/A Galv V-5 185/80D13C
CAIB3000 3000 3700 16-20 I-BEAM Aluminum Single Spring Disc/1 Axles Galv V-5 215/75R14C
CAIB3800 3800 4900 18-21 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 205/75R14C
CAIB4500 4500 5600 20-22 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 105/75R14C
CAIB5200 5200 6300 22-24 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 205/75R14C
CAIB6300 6300 7900 23-25 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 205/75R15D
CAIB7200 7200 8800 24-27 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 225/75R15D
CAIB9000 9000 10850 26-28 I-BEAM Aluminum Tandem Spring Elec/2 Axles Galvanized 235/80R16E
CAIB10000 10000 11952 26-28 I-BEAM Aluminum Tri-Axle Spring Elec/3 Axles Galvanized 225/75R15D
CAIB15000 15000 17850 28-32 I-BEAM Aluminum Tri-Axle Spring Elec/3 Axles Galvanized 235/80R16E
Coastal Aluminum
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
CSAI2350 2350 2995 16-18 I-BEAM Aluminum Single TORSION N/A GALV TRACKER ST185/80D13C
CSAI3000 3000 3700 18-20 I-BEAM Aluminum Single TORSION Disc/1 Axle GALV V5 ST215/75D14C
CSAI3800 3800 4900 20-22 I-BEAM Aluminum Tandem TORSION Disc/2 Axles GALV V5 ST215/75D14C
Custom Alum Tube
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
CAT1500 1500 2180 14-16 TUBE Aluminum Single Spring N/A Galv V-5 ST175/80D13C
CAT2000 2000 2620 16-18 TUBE Aluminum Single Spring N/A Galv V-5 ST175/80D13C
CAT2350 2350 2995 18-20 TUBE Aluminum Single Spring N/A Galv V-5 ST215/75D14C
CAT3000 3000 3700 18-20 TUBE Aluminum Single Spring Disc/1 Axle Galv V-5 ST215/75D14C
Custom Aluminum I-TUBE
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
CAIT2350 2350 2960 16-18 I-TUBE Aluminum Single TORSION N/A 14 Alum TURISMO 205/75/R14C
CAIT3000 3000 3700 16-18 I-TUBE Aluminum Single TORSION Disc/ 1 Axle 14 Alum TURISMO 215/75R14C
CAIT4000 4000 5100 18-20 I-TUBE Aluminum Tandem TORSION Disc/ 2 Axles 14 Alum TURISMO 205/75R14C
CAIT4500 4500 5800 20-22 I-TUBE Aluminum Tandem TORSION Disc/2 Axles 14 Alum TURISMO 205/75R14C
CAIT5500 5500 6800 22-24 I-TUBE Aluminum Tandem TORSION Disc/2 Axles 14 Alum TURISMO 215/75R14C
